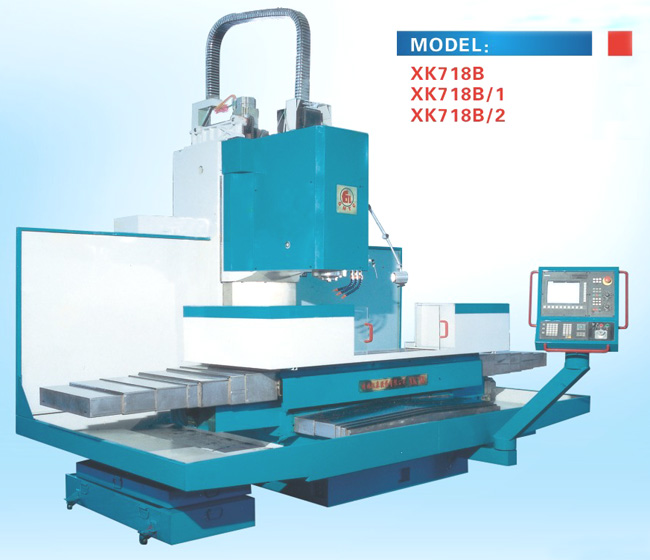

With high rigidity, large cutting, this CNC bed-type milling machine is suitable for milling, boring and drilling in various industries.
●High rigidity, well stability and large bearing capacity.
●he spindle realizes the infinitely variable speed by the way of AC servo motor in combination with mechanical gearbox.
●Large parts such as column, slider, base, spindle box and table are cast-iron parts with box structure and enough gibes, whole machine with enough strength, rigidity and stable accuracy.
●A set of each guidway isrectangular guideway, it is sticky plastic. The guideways driven by ballscrew, with well anti-fruction, low speed feed without crawl and high precision.
●The cross guideway is designed as four guideways structure and supported with large span, high stability and large bearing capacity.
●With tool self-lock.
●Automatic central lubrication with fixed time and quantity.
●Each guideway with protection hood.
●Compact and fine structure, equipped with CNC systems 802D (Siemens), Hua Zhong CNC system or other CNC systems.
| Name |
Unit |
XK718B |
XK718B/1 |
XK718B/2 |
| Working table（W×L） |
mm |
800×1300 |
800×1500 |
800×1800 |
T-slot |
Number |
|
5 |
| Width |
mm |
18 |
22 |
| Pitch |
mm |
100 |
125 |
125 |
Travel of three directions |
Longitudinal |
mm |
1200 |
1400 |
1600 |
| Cross |
mm |
700 |
7600 |
7600 |
| Vertical |
mm |
800 |
| Distance between spindlenose and table surface |
mm |
100～900 |
Distance between spindle central
line and vertical guideway |
mm |
800 |
| Spindle motor power |
kw |
11 |
| Spindle speed |
Range |
rpm |
30~2500 |
30~2500 |
30~2500 |
| Numer |
|
2 classes infiniterly |
| Spindle taper |
|
ISO50 |
| Rapid speed of three directions |
mm/min |
X、Y：10000，Z:8000 |
| Feed speed of three directions |
mm/min |
6~4000 |
| Rated torque of servo motor of three directions |
N.m |
27 |
| Max. bearing weight of table |
kg |
1500 |
| Positioning accuracy |
mm |
±0.01/500 |
| Reset accuracy |
mm |
0.010 |
| Net weight |
kg |
11000 |
| Overall dimensions (L×W×H) |
mm |
4560×3900×3568 | |
|
