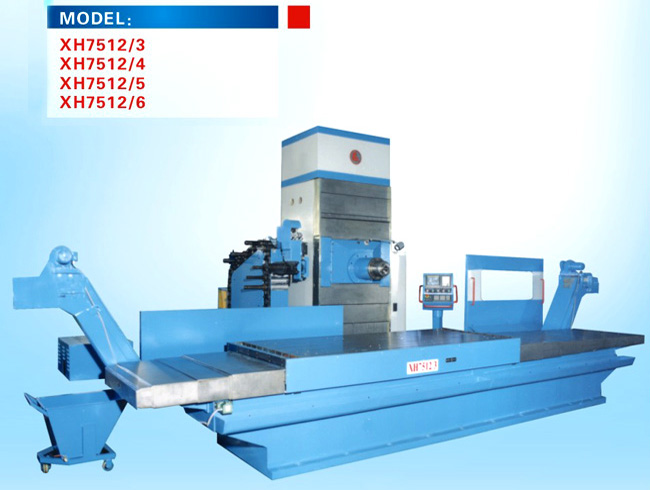

This machine is a horizontal machining center, with high rigidity, large cutting and enclosed hood. It can mill, bore, drill and tapping and so on. It is widely used in all machinery manufacturing industries.
●Reasonable structure, beautiful configuration, high rigidity and large bearing capacity.
●The spindle realizes the automatic infinitely variable speed by the way of AC servo motor in combination with mechanical gearbox.
●Linear rolling guideways, ballscrew, with well anti-friction, low speed without crawl and high precision.
●Movable column with high rigidity.
●Up-down parts with automatic hydraulic balance.
●Chain tool magazine with automatic change tool to tool.
●Automatic central lubrication with fixed time and quantity.
●Each guideway with stainless steel hood.
●Two chip removal devices.
●Equipped with Siemens, Fanuc, Fagor and domestic Huazhong CNC systems and AC servo motor.
| Name |
unit |
XH7512/3 |
XH7512/4 |
| Working table（W×L） |
mm |
1200×3000 |
1200×4000 |
T-slot |
Number |
|
9 |
| Width |
mm |
22 |
| Pitch |
mm |
125 |
125 |
Travel of table |
Longitudinal |
mm |
3000 |
4000 |
| Cross |
mm |
1500 |
1500 |
| Vertical |
mm |
1100 |
| Distance between spindle central line and table surface |
mm |
150～1250 |
| Spindle motor power |
kw |
22 |
| Spindle speed |
rpm |
30～3000 |
| Spindle taper |
|
BT50 |
| Rapid speed of three directions |
m/min |
X、Y：10 ，Z：10 |
| Feed speed of three directions |
mm/min |
10～5000 |
| Tool capacity |
|
40（Optioanal） |
| Tool change time (tool to tool) |
sec |
3.5 |
| Max. length of tool |
mm |
400 |
| Max. diameter of tool |
|
Φ125（Full），Φ250（Both sides are empty） |
| Max. weight of tool |
kg |
15 |
| Max. bearing weight of table |
kg |
4000 |
5000 |
| Positioning accuracy |
mm |
±0.015/1000 |
| Reset accuracy |
mm |
0.01 |
| Net weight |
T |
32 |
38 |
| Overall dimensions (L×W×H) |
mm |
9550×5200×3700 |
11550×5200×3700 | |
|
